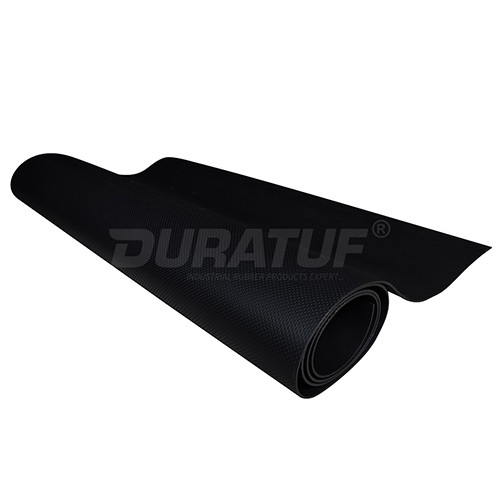

Safevolt Electrical Insulating Mats

Safevolt Electrical Insulating Mats Specification

Installation Guideline
Lay flat over floor area, cut as per requirement, no adhesive required

Size
Standard Roll: 10 meters; Custom sizes available

Feature
Flame Retardant, Non-conductive, Resistant to Acids, Alkalis, Oils, and Fire

Density
1.5 Gram per cubic centimeter(g/cm3)

Thermal Conductivity
Low, suitable for electrical insulation

Coating Type
No additional external coating

Layer
Single layer, solid construction

Surface Treatment
Anti-skid, both sides textured or one side plain

Product Type
Electrical Insulating Mats

Material
Rubber

Rated Voltage
3.3 kV, 11 kV, 33 kV

Tensile Strength
Minimum 15 N/mm2

Width
2-3 Millimeter (mm)

Thickness
2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm

Application
Insulation

Breakdown Voltage
Greater than 40 kV

Heat Conductivity
Low

Color
As Per Requirement

Max Withstanding Temperature
-10C to +55C

Dielectric Strength
40 kV for 1 minute as per IS:15652

Ozone Resistance
Excellent

UV Resistance
Yes

Water Absorption
Less than 0.5%

Shelf Life
5 Years from date of manufacture

Elongation at Break
250% Minimum

Weight per Square Meter
Varies with thickness, approx. 3-9 kg/m2

Insulation Resistance
Greater than 1,00,000 Mega Ohms

Surface Finish
Textured / Anti-slip

Flame Resistance
Self-extinguishing

Safevolt Electrical Insulating Mats Trade Information

Minimum Order Quantity
590 Square Meters

FOB Port
Kolkata

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Square Meters Per Month

Delivery Time
3 Week

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Packaging Details
HDPE Packaging

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
BIS, RoHs

About Safevolt Electrical Insulating Mats

The Duratuf electrical insulating mats are highly favored for their functionality and durability. We offer a wide range of insulating rubber mats under 1 roof. The X-Volt electrical rubber mats comply with the IS 15652 safety standard.

As a trusted electrical rubber mat supplier, we provide third-party type-tested certificates with our X-Volt electrical mats. Furthermore, their upper surface has prominent ISI markings on every meter (following the latest IS 15652:2006 safety standard).

Our electrical floor mats are considered vital safety equipment. Whether it is a production unit or a commercial set-up, the Duratuf X-Volt insulation rubber mats reduce electrical hazards. Besides electrical insulation, they offer lower leg comfort to the workers standing on them for hours.

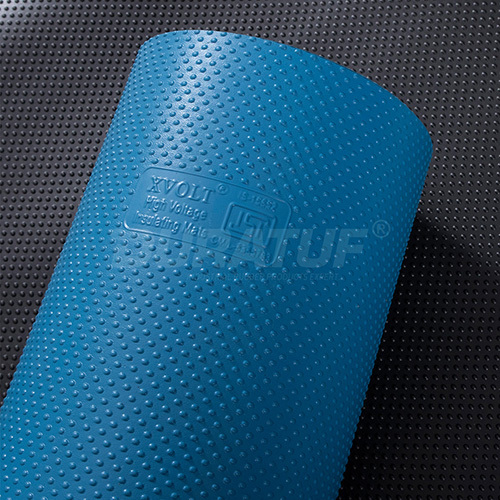

The insulating mats are anti-slip having a dotted surface. You can choose between the blue and black colors of the X-Volt insulated rubber mats.

Unmatched Electrical Protection

Engineered to provide insulation resistance exceeding 1,00,000 Mega Ohms and a dielectric strength of 40 kV, Safevolt mats effectively prevent accidental electrical shocks. These mats are key to ensuring workplace safety during electrical operations in diverse environments such as substations, factories, and industrial floors.

Flexible, Durable, and Long-Lasting

With an elongation at break of 250% minimum and tensile strength above 15 N/mm2, Safevolt mats combine flexibility with robustness. Their single-layer, solid rubber construction resists acids, alkalis, oils, fire, UV rays, and ozone, ensuring longevity and optimal performance for up to five years from manufacture.

Simple and Versatile Installation

No special adhesives or tools are needed: simply lay the mats flat over the desired floor area and cut them to fit, leveraging the anti-slip textured finish for extra safety. Standard 10-meter rolls and custom sizes address unique installation requirements in all facility types.

FAQ's of Safevolt Electrical Insulating Mats:

Q: How do I install Safevolt Electrical Insulating Mats?

A: Installation is straightforward: Lay the mat flat across the required floor area and cut to fit as necessary. The mats require no adhesives and are ready for use immediately after placement, thanks to their textured, anti-skid surfaces.

Q: What benefits does using Safevolt Electrical Insulating Mats provide?

A: These mats ensure high levels of electrical safety by providing insulation resistance over 1,00,000 Mega Ohms and dielectric strength of 40 kV. They are flame-retardant, self-extinguishing, and resist chemicals, making them suitable for use in harsh industrial and electrical environments.

Q: Where can Safevolt mats be used effectively?

A: Safevolt mats are ideal for use in electrical substations, switch rooms, workshops, high-voltage installation areas, and control panels. Their robust, anti-slip design and resistance to industrial hazards make them versatile for a range of professional settings.

Q: What is the minimum and maximum thickness available for these mats?

A: Safevolt Electrical Insulating Mats are available in thicknesses ranging from 2 mm to 10 mm, allowing selection as per voltage rating and insulation requirements.

Q: When should the mats be replaced?

A: Safevolt mats have a shelf life of five years from the date of manufacture. Inspection should be done periodically, and replacement is recommended if the mat sustains visible damage or exceeds the shelf life.

Q: What processes ensure the mats' resistance to flame, UV, and chemicals?

A: The mats are manufactured from special compounds in a single solid rubber layer, providing self-extinguishing flame resistance, as well as excellent ozone, UV, and chemical resistance without the need for external coatings.

Q: How are Safevolt mats beneficial in preventing accidents?

A: The mats' high insulation values, anti-skid surface, and robust material help prevent electrical shocks and slips, thereby ensuring overall safety for personnel working near electrical equipment.
